What are PIB Corners Without Butyl?

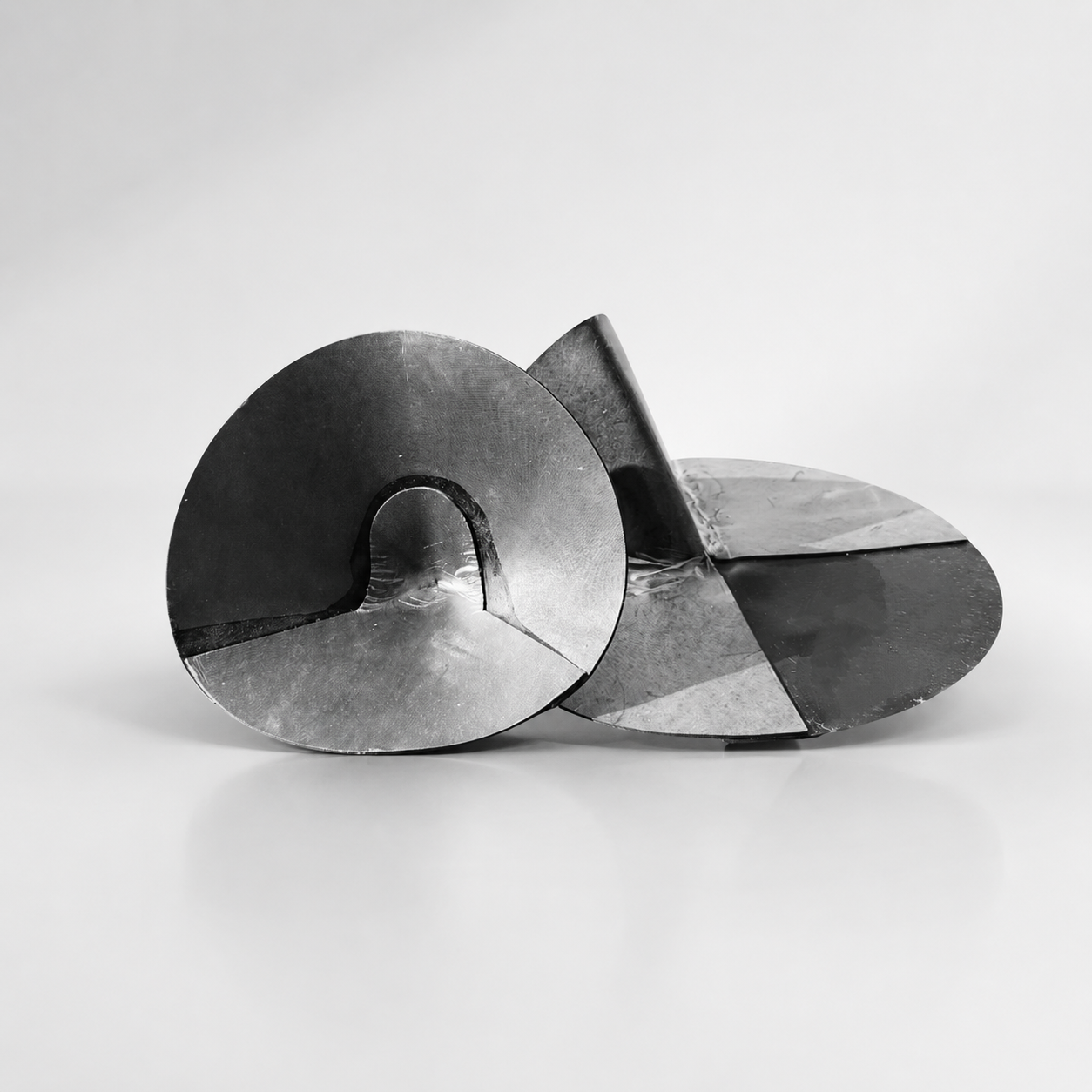

PIB Corners Without Butyl are prefabricated corner details made from the same PIB material as EasyFLEX PIB Roofing Membrane Rolls. They form part of the EasyFLEX system and are used around corners, terminations and difficult details where a preformed solution can make installation faster and more consistent.
The corners are installed using SabetoFLEX Accelerator Glue and are particularly useful in areas where forming, cutting or adapting the membrane directly on site would be difficult.
The corner type, position, adhesive and detailing method must always be selected according to the substrate, roof build-up, exposure and project requirements.
Product highlights
Areas of application
PIB Corners Without Butyl are used where a prefabricated corner can provide a faster, more consistent and more controlled installation than forming the detail directly on site.
Typical applications include:
- Internal corners
- External corners
- Terminations and connections
- Details around upstands and edges
- Corner areas where precise adaptation is important
- Projects requiring a consistent PIB detailing solution
The corner type, position and installation method must always be assessed according to the roof build-up, substrate and project requirements.
| Product type | Prefabricated PIB corners without butyl backing |
|---|---|
| Application | Details, corners, terminations, upstands and difficult connections |
| Material | Same PIB material as EasyFLEX PIB Roofing Membrane Rolls |
| Variants | Internal and external corners |
| Packaging | Recyclable cardboard box containing 12 pieces |
| Installation | Installed using SabetoFLEX Accelerator Glue |
| System compatibility | For EasyFLEX PIB Roofing Membrane Rolls and relevant EasyFLEX detailing solutions |
The table shows selected key data. Product suitability depends on the roof build-up, substrate, corner type, position, installation conditions and project requirements.
How to use the product
PIB Corners Without Butyl are used as prefabricated detailing components within the EasyFLEX PIB system. Select an internal or external corner according to the detail, then install it using SabetoFLEX Accelerator Glue.
The product is particularly useful where corners, upstands or terminations require a consistent and controlled PIB solution without extensive cutting and shaping on site.
The substrate, position, overlap, adhesive consumption and detailing method must always be assessed according to the specific roof build-up and project requirements.
Application notes
PIB Corners Without Butyl are installed with SabetoFLEX Accelerator Glue on suitable PIB surfaces and details.
All surfaces must be clean, dry and free from dust, dirt, oil, grease and loose material before installation.
Select the corner type and position to suit the specific detail, roof build-up, substrate and project requirements.
Always consult the installation video and relevant system documentation before use.
Related system products
PIB Corners Without Butyl are used as prefabricated detailing components within the EasyFLEX PIB system.
PIB roofing membrane supplied in rolls for flat and low-pitched roofs with flame-free installation.
PIB-based glue for sealing overlaps between PIB roofing membrane rolls and relevant PIB details.
Sprayable contact adhesive for installing membranes, vapour barriers and reinforcement mesh in EasyFLEX roof build-ups.
Reinforcing fibreglass mesh for roof build-ups where additional stability or support is required.
Need advice or have a question about the right solution? Contact EasyFLEX Roofing, and we'll help you move the project forward.
Documentation
PIB Corners Without Butyl are manufactured from the same PIB material as EasyFLEX PIB Roofing Membrane Rolls. The relevant technical, fire-test and material documentation is therefore collected under the EasyFLEX PIB system documentation.
Technical data sheet
EasyFLEX PIB Roofing Membrane Rolls – Technical Data Sheet
Product data, applications, dimensions, temperature resistance, vapour tightness, UV stability, fire classification and environmental product information.
Fire testing and classification
Fire test – CEN/TS 1187, test method 1
Test documentation for external fire exposure of the EasyFLEX/SabetoFLEX PIB roof build-up in accordance with CEN/TS 1187, test method 1.
Fire test – CEN/TS 1187, test method 2
Test documentation for external fire exposure of the EasyFLEX/SabetoFLEX PIB roof build-up in accordance with CEN/TS 1187, test method 2.
Ageing, UV and material documentation
Extended ageing – 18,000 hours
Documentation of extended ageing tests for the PIB material, including long-term exposure and evaluation of material properties following accelerated UV ageing.
