Hot and Cold Industrial Pipework
Flexible protection systems for insulated industrial pipework where moisture control, movement, service access and complex details must work together.
Different pipework, different moisture strategy
Hot and cold pipe systems place very different demands on the insulation build-up. Hot pipes often need controlled moisture release, while cold pipes require a tighter finish to reduce the risk of vapour ingress and condensation.
HankoFLEX® combines insulation, flexible PIB membrane, bonded seams and versatile coatings into project-specific systems for industrial pipework. The solution is adapted to operating temperature, pipe geometry, insulation type and the level of access required for service and inspection.
Protection around the weak points
Industrial pipework is rarely simple. Flanges, valves, supports, bends, penetrations and end terminations all create areas where rigid protection can struggle.
HankoFLEX® uses flexible PIB details, adhesive-bonded seams and Sabeto Shield Coating to create more continuous protection around the areas where movement, vibration and complex geometry place the greatest demands on the system.

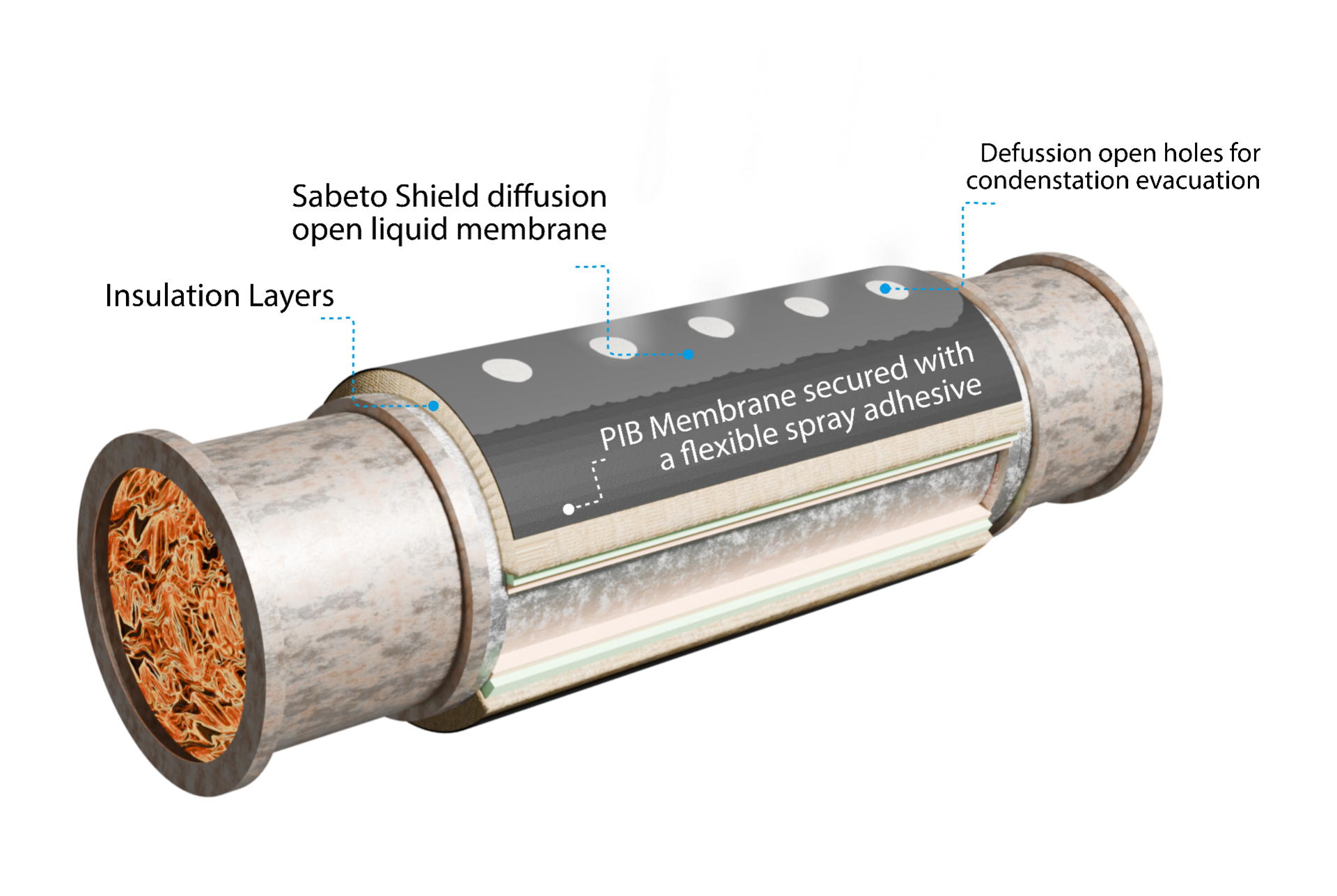

Hot pipes: controlled moisture release
For hot pipework, the system protects the insulation while allowing residual moisture to escape from the build-up in a controlled way.
The build-up can include temporary or permanent ventilation openings together with a vapour-open Sabeto Shield Coating. This helps avoid trapping moisture inside the system while maintaining a flexible outer protection around the insulation.
Typical build-up:
- Insulation layer
- Flexible PIB membrane
- Bonded seams and overlaps
- Ventilation openings
- Sabeto Shield Coating at critical areas
Cold pipes: diffusion-tight final sealing
Cold pipework requires a tighter vapour-control strategy because moisture ingress and condensation can reduce insulation performance and increase the risk of damage inside the build-up.
Moisture is first allowed to escape through temporary ventilation openings. Once the build-up is ready for closure, the openings are sealed with circular PIB patches and an additional Sabeto Shield layer to create a diffusion-tight finish around the insulated pipework.
Typical build-up:
- Insulation layer
- Flexible PIB membrane
- Bonded seams and overlaps
- Temporary ventilation openings
- Circular PIB patches
- Additional Sabeto Shield sealing layer
Integrated Access for Maintenance and Inspection
Valves, motors and inspection points need to remain accessible for service and maintenance. Opening a conventional insulation system can damage the surrounding protection and create new weak points.
HankoFLEX® can include removable insulated access enclosures adapted to the pipe diameter and component geometry. Custom PIB transitions connect the enclosure to the surrounding insulation, while Sabeto Shield Coating seals the interface.
Do you have a hot or cold pipework project?
Contact EasyFLEX Roofing if you need dialogue about insulation protection, moisture control, material transitions, service access or custom PIB details for industrial pipework.
Technical resources at your fingertips
Need technical information or product documentation for HankoFLEX pipework systems, membrane protection or custom PIB details?
In the Resource Library, you can find relevant documentation for membrane protection, PIB details, primers, coatings and related components for industrial insulation tasks.
