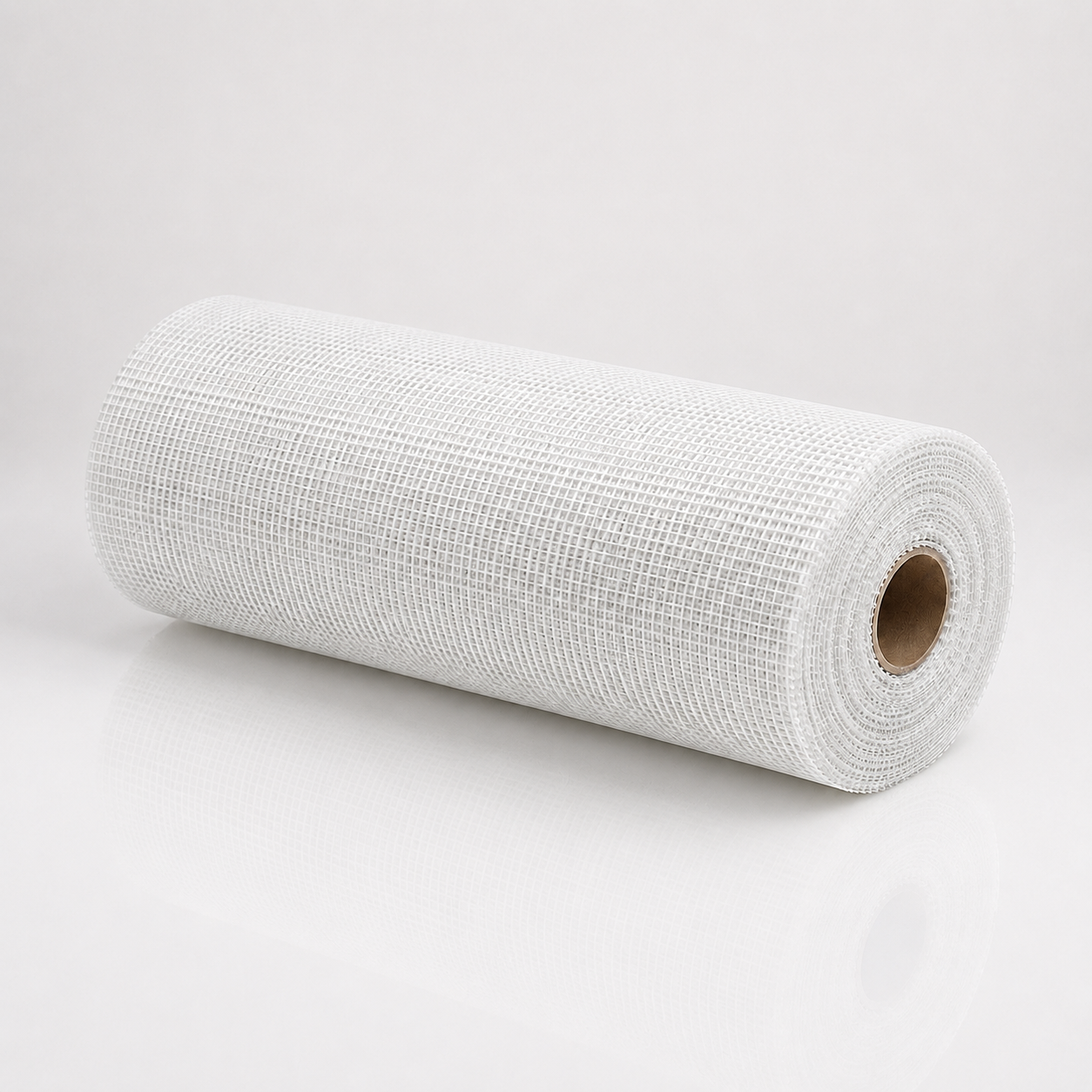

What is EasyFLEX Reinforcement Mesh?
EasyFLEX Reinforcement Mesh is a reinforcing fibreglass mesh for professional roof systems. It is used as a stabilising layer where additional strength, dimensional stability or structural support is required within the complete build-up.
The mesh can be installed between the substrate, insulation and EasyFLEX PIB roofing membrane using EasyFLEX Adhesive Spray, according to the selected system design.
The reinforcement mesh, adhesive and roof build-up must always be assessed according to the substrate, insulation type, loading, fixing method and project requirements.
Product highlights
Areas of application
EasyFLEX Reinforcement Mesh is used in professional EasyFLEX roof build-ups where additional stability, reinforcement or dimensional support is required.
Typical applications include:
- Reinforcement in EasyFLEX PIB roof build-ups
- Stabilisation between the substrate or insulation and the PIB roofing membrane
- Roof systems where additional dimensional stability is required
- Projects where reinforcement mesh forms part of the specified system solution
- Professional roof projects using EasyFLEX Adhesive Spray and EasyFLEX PIB roofing membrane
Surfaces must be clean, dry and free from dirt, dust, oil, loose paint, wax, grease and other materials that may affect adhesion.
| Product type | Reinforcing fibreglass mesh |
|---|---|
| Application | Reinforcement and stabilisation in EasyFLEX roof build-ups |
| Material | Fibreglass / E-glass |
| Colour | White |
| Mesh size | Approximately 4 × 4 mm |
| Weight | Approximately 160 g/m² |
| Width | 100 cm ± 2% |
| Tensile strength | Approximately 2,000 N/5 cm in both directions |
| Melting point | Approximately 1,250 °C |
| Safety | Not classified as a hazardous substance or hazardous mixture |
The table shows selected key data. Always consult the technical documentation and safety data sheet before use. Product suitability depends on the substrate, insulation type, system build-up, installation conditions and project requirements.
How to use the product
EasyFLEX Reinforcement Mesh is used as a reinforcing layer in EasyFLEX roof build-ups. The mesh is installed with EasyFLEX Adhesive Spray before the EasyFLEX PIB roofing membrane is applied.
Application notes
EasyFLEX Reinforcement Mesh must be installed on a suitable substrate or insulation layer according to the selected EasyFLEX system build-up.
All surfaces must be clean, dry and free from dirt, dust, oil, loose paint, wax, grease and other materials that may affect adhesion.
Test EasyFLEX Adhesive Spray on the insulation or substrate before installation where required. Apply the adhesive according to the technical instructions, then place the reinforcement mesh into the adhesive layer with the specified overlap and full, even contact.
Check the position, overlap and adhesion before installing the EasyFLEX PIB roofing membrane directly above.
Always consult the installation instructions and relevant technical documentation before use.
A typical workflow includes:
- Inspect the substrate or insulation
- Clean the surface so it is dry and free from contaminants
- Test EasyFLEX Adhesive Spray on the substrate where required
- Apply EasyFLEX Adhesive Spray according to the selected system build-up
- Install EasyFLEX Reinforcement Mesh into the adhesive layer
- Check positioning, overlap and consistent contact
- Install the EasyFLEX PIB roofing membrane directly above
Related system products
EasyFLEX Reinforcement Mesh is used in roof build-ups where additional stability or support is required.
Sprayable contact adhesive for installing membranes, vapour barriers and reinforcement mesh in EasyFLEX roof build-ups.
PIB roofing membrane supplied in rolls for flat and low-pitched roofs with flame-free installation.
PIB-based glue for sealing overlaps between PIB roofing membrane rolls and relevant PIB details.
Prefabricated PIB corners without butyl backing for PIB details, corners and difficult connections.
Need advice or have a question about the right solution? Contact EasyFLEX Roofing, and we'll help you move the project forward.
Documentation
Find the relevant documentation for EasyFLEX Reinforcement Mesh. Technical documentation and the safety data sheet are collected here, so you can quickly access the file you need.
Technical data sheet
EasyFLEX Reinforcement Mesh – Technical Documentation
Product data, material properties, mesh size, weight, width, tensile strength, application and system-related information.
Safety data sheet
EasyFLEX Reinforcement Mesh – Safety Data Sheet
Information on handling, storage, protective measures and safe use.
